abacus       CONTROL SYSTEMS

The Abacus™ Control System revolutionizes building applications by monitoring over 10 essential parameters that govern efficiency, safety, and performance. This cutting-edge technology integrates wireless communication, embedded microprocessors, and sensors, all controlled by a powerful yet user-friendly interface. Whether you require integral units or modular units for specific functions, Abacus™ offers all levels of control with state-of-the-art upgradeable technology. Experience the future of building control with the Abacus™ Control System.



TANK CONTROL PANEL

Provides state-of-the-art upgradeable modular control for existing tank systems:



• Uses UL approved sensors
• Does not use floats
• HOA (hand (manual), off or automatic operation)
• Controls supply of water
• Turns pump on and off
• Controls motorized solenoid valve
• Lead-Lag control
• Local hi - lo water level control
• option to set and send additional hi - lo points to central fire alarm
   command station which will take over if water level is too low.
• Additional ennunciation for security
• Additional ennunciation for turbidity









PUMP CONTROL PANEL

Provides state-of-the-art upgradeable modular control for existing tank and tankless pressurized systems:



  • • Uses UL approved sensors
  • • Does not use floats
  • • HOA (hand (manual, off or automatic operation)
  • • Disconnect switches,
  • • Smart starters
  • • Monitors low suction pressure
  • • Alternation
  • • Controls variable speed drives
  • • On single speed drive systems, controls slow close valves
  • • Available with 2-4 pumps, to 1500 GPH
       for gravity tanks or pressure systems





Fully integrated system includes:

  • Variable speed fan (up to four motors)
  • Make-up water shut off
  • Hi-low levels in the cold water basin
  • Temperature of the cold water basin
  • Motor vibration
  • Chemistry
  • Turbidity
  • Static pressure
  • Tower efficiency





back to top

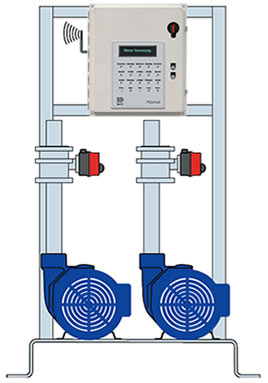

abacus       PUMP STATIONS

Upgrade your pressurized water system with Abacus™ Pump Stations featuring Max E Inverter Duty Motors for immediate energy savings. Our advanced microprocessor technology and user-friendly Abacus™ iD interface provide state-of-the-art modular control for both existing tank and tankless systems. With Abacus™, you can easily upgrade and customize your system to meet your specific needs while saving energy and improving overall efficiency.



  • • Uses UL approved sensors
  • • Does not use floats
  • • Operates on existing riser
  • • HOA (hand, manual, off or automatic operation)
  • • Disconnect switches
  • • Smart Starters
  • • Monitors low suction pressure
  • • Alternation
  • • Lead - lags



Designed for New or Replacement Installations

All Stainless Steel Framework

Slow Closing Anti-Hammer Stainless Full Port Ball Valves

Available With 2-4 Pumps, to 1500 GPH

For Gravity Tanks or Pressure Systems

Premium Efficiency or Inverter Motorscy

back to top

THE abacus ADVANTAGE



Technology

The abacus core technology is non-contact ultrasonic level measurement. This highly reliable sensor emits multiple high frequency pulses per second from the base of the transducer. Each pulse travels through the air, reflects off of the tanks water surface and returns to the transducer where it is received. This temperature compensated sensor calculates the time interval from the pulse transmission to receipt, and translates this into distance based upon the speed of sound. Packaged in advanced thermoplasticss, The abacus Utrasonic Sensor requires no maintenance, and provides better performance than traditional floats or contact devices, which generally suffer from prolonged liquid contact. A minimum 2 wire connection is all that is needed.







Digital Signal Processing

with Max E Inverter Duty Motors: Immediate Energy Savings

Our ultrasonic level sensor features our patented digital signal processing technology that delivers the abacus advantage, accurate and reliable, non-contact measurement of your tank water. This adaptive technology creates a living map of your tank process and continuously optimizes sensor power, obstacle recognition, signal output filtering, environmental noise rejection and fail-safe diagnostics. The DSP advantage delivers the following application benefits:



  • • Robust non-contact level measurement from 0.25m-10m
  • • 0.2% accuracy with little or no degradation over the range
  • • Auto-adaptive signal output filtering smooths liquid agitation
  • • Narrow 2” beam width for installation near walls or obstacles
  • • Tight 2” dead band optimizes the filling capacity of small tanks
